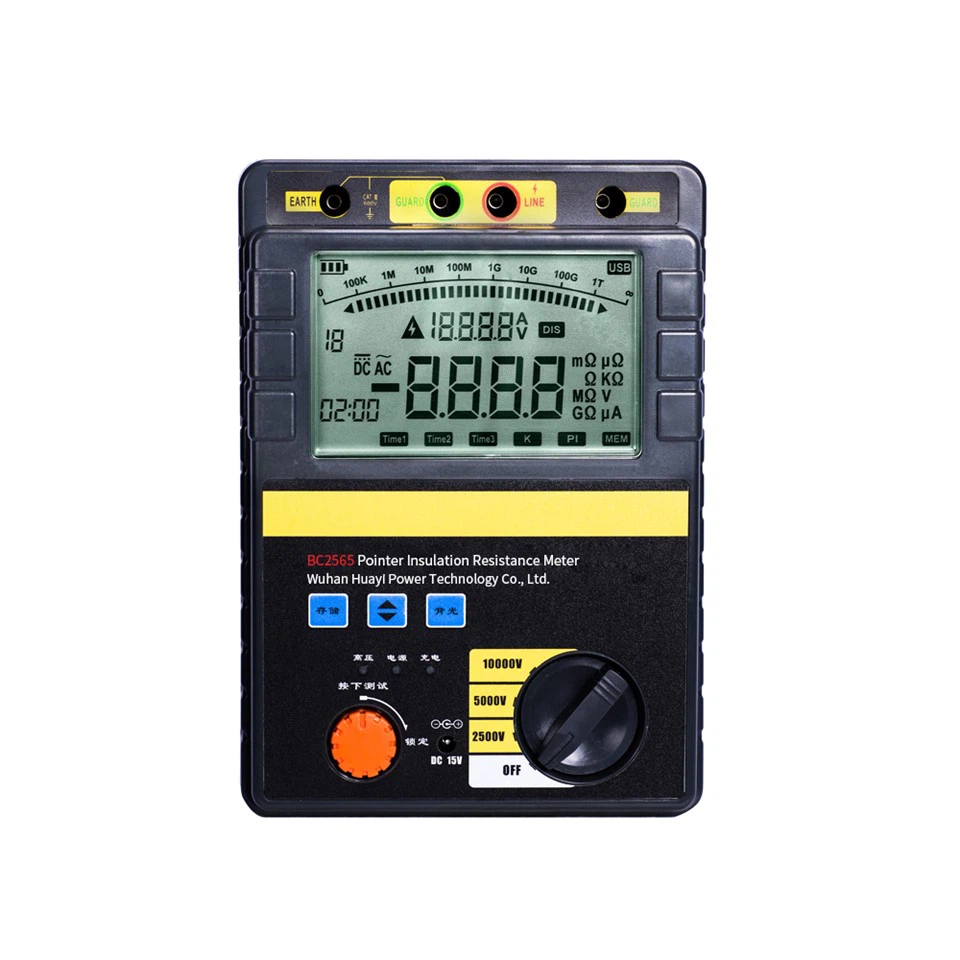

Our BC2565 uses embedded industrial microcontroller real-time operating system, digital-analog pointer and digital segment display perfect combination, this series products with a variety of output voltage level (2500V, 5000V, 10000V), strong anti-interference, analog pointer with digital synchronous display, available for both AC and DC, simple operation, automatically save measurement results. It is the ideal test instrument for measuring insulation resistance for transformers, mutual inductors, generators, high-voltage motors, and arresters.
|
M |
BC2565 |
|||
|
|
2500V DC |
5000V DC |
10000V DC |
|
|
|
23 degree ±5 degree |
|||
|
|
5M-100G ±5％ |
10M-200G ±5％ |
20M-400G ±5％ |
|
|
Other ranges:±10％ |
|
|
||
|
2.5M-100G |
5M-200G |
10M-400G |
||
|
0-+10％ |
0-+10％ |
0-+10％ |
||
|
HV short-circuit current |
Greater than or equal to 1mA |
|||
|
|
8 AA batteries (8 AA rechargeable batteries, external charger) |
|||
|
|
Temperature:-10 degree -40 degree , Relative humidity: Less than or equal to 85 % |
|||
|
|
Temperature:-20 degree -60 degree , Relative humidity: Less than or equal to 90 % |
|||
|
|
When the voltage between circuit and shell body is 1000V DC, the maximum resistance is 2000MΩ. |
|||
|
|
When apply 3Kv/50Hz sine wave voltage between circuit and shell body, withstand voltage time is 1 minute. |
|||
|
|
230×190×90mm (L×W×H) |
|||
|
|
2.5kg |
|||
|
|
||||
1. Output voltage (500V,1000V,2500V,5000V), resistance measurement range 0~ 400GΩ.
2. Two ways synchronous display resistance value. The variation range of the insulation resistance can be easily observed by analog pointer, digisplay can easily read the test results.
3. Uses embedded industrial microcontroller real-time operating system. With high automation degree, strong anti-interference ability, auto saves test results.
4. Friendly interface, various measurement results against power failure function, can store the measurement results for 19 times.
5. If the instrument with high voltage, there will be prompt tone and with corresponding display.
6. AC/DC dual-use, built-in rechargeable battery and AC adapter.
7. Portable design, convenient for field operation.
8. High voltage short circuit current Greater than or equal to 1mA, it is an ideal insulation resistance tester to measure transformer, instrument transformer, generator, high voltage motor, power capacitor, power cable, arrester, etc
|
|
|
|
|
1 |
||
|
2 |
||
|
3 |
||
|
4 |
||
|
5 |
AC 220V Power line |
|
|
6 |
||
|
7 |
||
|
8 |
1.
2.
3. 24-hour online contact, Choose the right model of equipment according to your request, give the best offer, support customization
4. All machine quality guarantee for one year and lift-time technical support for you. Online response to customers technical problems.
